Yolo on Google Colab

Run YOLO V3 on Colab for images/videos

Hello there,
Today, we will be discussing how we can use the Darknet project on Google Colab platform. For those who are not familiar with these terms:

YOLO in action!

  • The Darknet project is an open-source project written in C, which is a framework to develop deep neural networks.
  • Yolo V3 is an object detection algorithm. It is one of the state of the art solution when accuracy/processing power needed metric is considered.
  • Google Cola is a cloud-based data science workspace similar to the jupyter notebook. Each Collabrotary session is equipped with a virtual machine running 13 GB of ram and either a CPU, GPU, or TPU processor. In most case, all the required packages are already installed on these machines and you can quite easily start development using Google Collaboratory. It saves us from installing process and it provides us easy to accessible GPU’s which is also free under some constraints.

Have a look Ted Talk by Joseph Redmon the developer of the darknet project. The talk is about Darknet and YOLO projects which titled as “How computers learn to recognize objects instantly” . Darknet project aims to create a new neural network framework which is completely focused on simplicity and performance. The thing which I like about is its clarity and performance. All the code is written in C, to define a deep learning network you should only create a config file which defines the layers. By this way, it does not lose its performance capabilities also it provides us easy to use interface for development with this library.

Since I love both YOLO project and Google Colab, I decided to create a tutorial to use them together. I create a GitHub repository and a Collaboratory notebook for this purpose

Please check

Install

Go to the directory, clear and install everthing

  • Clone the project
  • Change make file configurations and make OPENCV and GPU enable
  • Install opencv library
1
2
3
4

import cv2, os
import matplotlib.pyplot as plt
%matplotlib inline
1
2
3
4
5
6
7
8
9
10
11

!ls
!cd /content
!rm -fr darknet
!git clone https://github.com/AlexeyAB/darknet/
% cd darknet
!sed -i 's/OPENCV=0/OPENCV=1/g' Makefile
!sed -i 's/GPU=0/GPU=1/g' Makefile
!sed -i 's/CUDNN=0/CUDNN=1/g' Makefile
!apt update
!apt-get install libopencv-dev
darknet  sample_data
Cloning into 'darknet'...
remote: Enumerating objects: 10732, done.
remote: Total 10732 (delta 0), reused 0 (delta 0), pack-reused 10732
Receiving objects: 100% (10732/10732), 10.30 MiB | 19.94 MiB/s, done.
Resolving deltas: 100% (7254/7254), done.
/content/darknet
Hit:1 https://cloud.r-project.org/bin/linux/ubuntu bionic-cran35/ InRelease
Ign:2 https://developer.download.nvidia.com/compute/cuda/repos/ubuntu1804/x86_64  InRelease
Get:3 http://security.ubuntu.com/ubuntu bionic-security InRelease [88.7 kB]
Hit:4 http://ppa.launchpad.net/graphics-drivers/ppa/ubuntu bionic InRelease
Ign:5 https://developer.download.nvidia.com/compute/machine-learning/repos/ubuntu1804/x86_64  InRelease
Hit:6 https://developer.download.nvidia.com/compute/cuda/repos/ubuntu1804/x86_64  Release
Hit:7 https://developer.download.nvidia.com/compute/machine-learning/repos/ubuntu1804/x86_64  Release
Hit:8 http://archive.ubuntu.com/ubuntu bionic InRelease
Get:9 http://archive.ubuntu.com/ubuntu bionic-updates InRelease [88.7 kB]
Hit:10 http://ppa.launchpad.net/marutter/c2d4u3.5/ubuntu bionic InRelease
Get:12 http://archive.ubuntu.com/ubuntu bionic-backports InRelease [74.6 kB]
Fetched 252 kB in 2s (143 kB/s)
Reading package lists... Done
Building dependency tree
Reading state information... Done
47 packages can be upgraded. Run 'apt list --upgradable' to see them.
Reading package lists... Done
Building dependency tree
Reading state information... Done
libopencv-dev is already the newest version (3.2.0+dfsg-4ubuntu0.1).
The following package was automatically installed and is no longer required:
  libnvidia-common-410
Use 'apt autoremove' to remove it.
0 upgraded, 0 newly installed, 0 to remove and 47 not upgraded.

Compile and Configure

  • Compile YOLO
  • Download YOLO weights
1
!make &> compile.log
1
!wget https://pjreddie.com/media/files/yolov3.weights
--2019-08-11 23:58:44--  https://pjreddie.com/media/files/yolov3.weights
Resolving pjreddie.com (pjreddie.com)... 128.208.4.108
Connecting to pjreddie.com (pjreddie.com)|128.208.4.108|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 248007048 (237M) [application/octet-stream]
Saving to: ‘yolov3.weights’

yolov3.weights      100%[===================>] 236.52M  62.1MB/s    in 4.1s

2019-08-11 23:58:48 (57.7 MB/s) - ‘yolov3.weights’ saved [248007048/248007048]

Test An Image

1
2
3
4
5
6
7
8
9
10
11
12
def predictImage(imageDir):
os.system("cd /content/darknet && ./darknet detect cfg/yolov3.cfg yolov3.weights {}".format(imageDir))
image = cv2.imread("/content/darknet/predictions.jpg")
height, width = image.shape[:2]
resized_image = cv2.resize(image,(3*width, 3*height), interpolation = cv2.INTER_CUBIC)

fig = plt.gcf()
fig.set_size_inches(18, 10)
plt.axis("off")
#plt.rcParams['figure.figsize'] = [10, 5]
plt.imshow(cv2.cvtColor(resized_image, cv2.COLOR_BGR2RGB))
plt.show()
1
2
!wget https://github.com/mozanunal/yoloOnGoogleColab/raw/master/test/test.jpg
!ls
--2019-08-11 23:58:49--  https://github.com/mozanunal/yoloOnGoogleColab/raw/master/test/test.jpg
Resolving github.com (github.com)... 192.30.253.113
Connecting to github.com (github.com)|192.30.253.113|:443... connected.
HTTP request sent, awaiting response... 302 Found
Location: https://raw.githubusercontent.com/mozanunal/yoloOnGoogleColab/master/test/test.jpg [following]
--2019-08-11 23:58:50--  https://raw.githubusercontent.com/mozanunal/yoloOnGoogleColab/master/test/test.jpg
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 151.101.0.133, 151.101.64.133, 151.101.128.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|151.101.0.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 68535 (67K) [image/jpeg]
Saving to: ‘test.jpg’

test.jpg            100%[===================>]  66.93K  --.-KB/s    in 0.05s

2019-08-11 23:58:50 (1.32 MB/s) - ‘test.jpg’ saved [68535/68535]

3rdparty      CMakeLists.txt          image_yolov3.sh         results
appveyor.yml  compile.log          include             scripts
backup          darknet              json_mjpeg_streams.sh  src
build          DarknetConfig.cmake.in  LICENSE             test.jpg
build.ps1     darknet.py          Makefile             video_v2.sh
build.sh      darknet_video.py          net_cam_v3.sh         video_yolov3.sh
cfg          data              obj             yolov3.weights
cmake          image_yolov2.sh          README.md
1

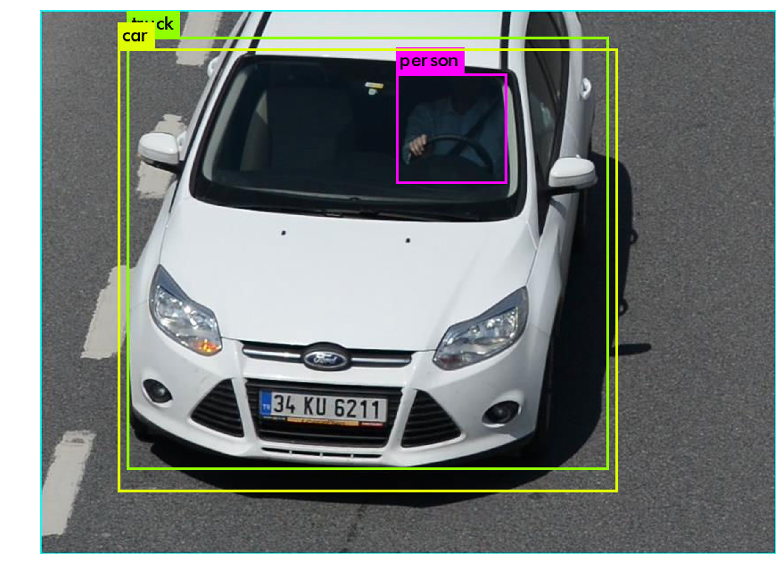

predictImage("test.jpg")

png

Test with Video

1
2
3
4
def predictVideo(videoDir):
os.system(""" cd /content/darknet && ./darknet detector demo cfg/coco.data cfg/yolov3.cfg yolov3.weights \
-dont_show {} -i 0 -out_filename res.avi
""".format(videoDir))
1
2
!wget https://github.com/mozanunal/yoloOnGoogleColab/raw/master/test/test.avi
!ls
--2019-08-11 23:59:01--  https://github.com/mozanunal/yoloOnGoogleColab/raw/master/test/test.avi
Resolving github.com (github.com)... 192.30.253.113
Connecting to github.com (github.com)|192.30.253.113|:443... connected.
HTTP request sent, awaiting response... 302 Found
Location: https://raw.githubusercontent.com/mozanunal/yoloOnGoogleColab/master/test/test.avi [following]
--2019-08-11 23:59:02--  https://raw.githubusercontent.com/mozanunal/yoloOnGoogleColab/master/test/test.avi
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 151.101.0.133, 151.101.64.133, 151.101.128.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|151.101.0.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 15897530 (15M) [application/octet-stream]
Saving to: ‘test.avi’

test.avi            100%[===================>]  15.16M  50.0MB/s    in 0.3s

2019-08-11 23:59:02 (50.0 MB/s) - ‘test.avi’ saved [15897530/15897530]

3rdparty    compile.log        json_mjpeg_streams.sh  src
appveyor.yml    darknet            LICENSE               test.avi
backup        DarknetConfig.cmake.in    Makefile           test.jpg
build        darknet.py        net_cam_v3.sh           video_v2.sh
build.ps1    darknet_video.py    obj               video_yolov3.sh
build.sh    data            predictions.jpg        yolov3.weights
cfg        image_yolov2.sh        README.md
cmake        image_yolov3.sh        results
CMakeLists.txt    include            scripts
1
predictVideo("test.avi")
1
!du -h res.avi
93M    res.avi
1
2
3
from google.colab import files

files.download('/content/darknet/res.avi')

See you later!
